Curved column radiators - Core

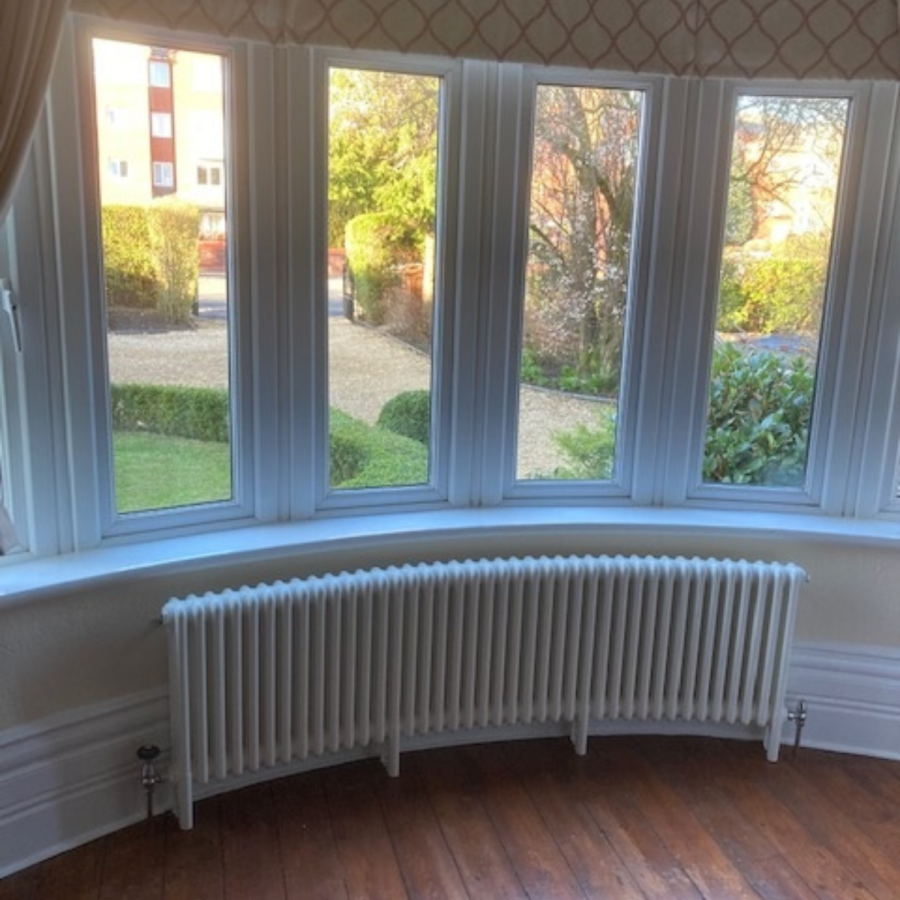

Perfect for bay windows in period properties or 30s semis, our best-selling column radiator can be made in a concave curved design to perfectly fit your space. Alternatively, a convex design may be the perfect solution against a spiral staircase wall, for example.
With effortless cool and stylish warmth, Core looks equally at home in contemporary as well as traditional interiors. Keenly priced and with its' impressive performance, this beauty will warm you to the core.
Curved Core is available in a range of colours, textured finishes and lacquered bare steel, meaning a transparent coating is applied to the bare mild steel of the radiator. This means that the manufacturing marks that occur during production of the radiator such as welds with be visible and are there purposely to give an industrial look to this radiator.
Contact our sales team for a quote - many more sizes than shown available!
- Perfect for round bay windows
- Feet can be added to any size - just ask
- Bespoke service
- Huge range of colours and finishes
Lead Time:Approximately 6 weeks
What our Customers Say About Us...
""
From
Know what heat output you require? Enter it into the below field and we'll let you know if a radaitor is right for your room.
Not sure what output you need to fill your room with heat? Complete the form below to calculate your required heat output.
My house was built after 2002 or is well insulated (part L compliant)
My room is north facing.
My room has French doors / large window.
My room has single glazed windows.
My room is exposed & colder.
Please select your Delta T Value
Using the dropdown below, please set your Delta T Value for use throughout the site...
IMPORTANT INFORMATION
- Lead time: All Curved Core radiators are by special order: approximately 6 weeks. Special order means that, once manufacture has commenced, orders cannot be cancelled.
- Finishes: Choose from a wide range of colours or lacquered bare steel. Lacquered bare metal is a transparent coating that is applied to the bare mild steel finish; it will expose the manufacturing marks that occur in production of the radiator such as welds and rivets – see close-up image.
- Material: Made of mild steel.
- Delivery: We offer delivery to most addresses on the UK mainland (excluding some remote areas)
- Fixings: Radiators are supplied with the necessary fixings i.e. wall bracket, plugs, bushes and vents. 1/2″ connections are supplied as standard. Screws are not supplied.
- Valve connections: Side valve connections so add 150mm in total to the length of the radiator to allow for valves. (These are not pipe centre measurements.)
- Valves and finishing touches: These not included as there is now so much choice available. See our Valves page for valves and accessories to complete the look.
- Pipe centre measurements: Approximate pipe centres can be provided if you wish to install your pipework in advance of receiving your radiator.
- Manufacturer’s guarantee: 10 year manufacturer’s guarantee against manufacturing defects.
- Heat outputs: These are shown at operating temperatures of Delta T 50. To alter this, please use our handy Delta T Value Changer shown on every product.
- Water treatment: The manufacturer’s guarantee will only be valid if your radiators are installed in accordance with British Standards. This means that, on completion of installation, the system should be properly flushed and filled to remove debris and minimise the presence of solid particles and chemical residues, which may cause corrosion and damage within the system. Corrosion inhibitor should be used in accordance with British Standards and should take into account the particular metals within the system.
- Terms and Conditions: All sales are subject to our standard Ts and Cs; a copy can be downloaded from our website.
- VAT: The prices shown are inclusive of VAT.
| Featured Product | No |
|---|
| Length | Height | Depth | Finish | Watts DT50 | BTUs DT50 | Price incl VAT |
|---|---|---|---|---|---|---|
| 21 Sections - 969mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 769 | 2623 | £728.76 |
| 21 Sections - 969mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 837 | 2855 | £735.24 |
| 21 Sections - 969mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 905 | 3086 | £745.80 |
| 22 Sections - 1014mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 805 | 2747 | £763.32 |
| 22 Sections - 1014mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 877 | 2992 | £770.16 |
| 22 Sections - 1014mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 948 | 3235 | £781.32 |
| 23 Sections - 1059mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 841 | 2871 | £798.12 |
| 23 Sections - 1059mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 916 | 3127 | £805.20 |
| 23 Sections - 1059mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 991 | 3380 | £816.84 |
| 24 Sections - 1104mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 878 | 2997 | £832.80 |
| 24 Sections - 1104mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 957 | 3264 | £840.24 |
| 24 Sections - 1104mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1034 | 3528 | £852.36 |
| 25 Sections - 1149mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 915 | 3121 | £867.60 |
| 25 Sections - 1149mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 996 | 3399 | £875.16 |
| 25 Sections - 1149mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1078 | 3677 | £887.76 |
| 26 Sections - 1194mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 951 | 3245 | £902.16 |
| 26 Sections - 1194mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1036 | 3536 | £910.20 |
| 26 Sections - 1194mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1120 | 3822 | £923.28 |
| 27 Sections - 1239mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 988 | 3372 | £936.84 |
| 27 Sections - 1239mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1076 | 3671 | £945.24 |
| 27 Sections - 1239mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1164 | 3970 | £958.92 |
| 28 Sections - 1284mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1025 | 3496 | £971.52 |
| 28 Sections - 1284mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1115 | 3806 | £980.28 |
| 28 Sections - 1284mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1206 | 4116 | £994.32 |
| 29 Sections - 1329mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1061 | 3620 | £1,006.32 |
| 29 Sections - 1329mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1156 | 3943 | £1,015.20 |
| 29 Sections - 1329mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1250 | 4264 | £1,029.84 |
| 30 Sections - 1374mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1098 | 3747 | £1,041.00 |
| 30 Sections - 1374mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1195 | 4078 | £1,050.36 |
| 30 Sections - 1374mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1292 | 4410 | £1,065.48 |
| 31 Sections - 1419mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1134 | 3871 | £1,075.68 |
| 31 Sections - 1419mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1236 | 4216 | £1,085.16 |
| 31 Sections - 1419mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1336 | 4558 | £1,100.88 |
| 32 Sections - 1464mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1171 | 3995 | £1,110.24 |
| 32 Sections - 1464mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1275 | 4351 | £1,120.32 |
| 32 Sections - 1464mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1379 | 4704 | £1,136.40 |
| 33 Sections - 1509mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1208 | 4121 | £1,145.16 |
| 33 Sections - 1509mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1315 | 4488 | £1,155.24 |
| 33 Sections - 1509mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1422 | 4852 | £1,171.92 |
| 34 Sections - 1554mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1244 | 4245 | £1,179.72 |
| 34 Sections - 1554mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1355 | 4623 | £1,190.40 |
| 34 Sections - 1554mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1465 | 4997 | £1,207.56 |
| 35 Sections - 1599mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1281 | 4369 | £1,214.40 |
| 35 Sections - 1599mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1395 | 4760 | £1,225.20 |
| 35 Sections - 1599mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1508 | 5146 | £1,242.96 |
| 36 Sections - 1644mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1318 | 4496 | £1,249.08 |
| 36 Sections - 1644mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1435 | 4895 | £1,260.36 |
| 36 Sections - 1644mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1551 | 5291 | £1,278.48 |
| 37 Sections - 1689mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1354 | 4620 | £1,284.00 |
| 37 Sections - 1689mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1475 | 5032 | £1,295.40 |
| 37 Sections - 1689mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1594 | 5439 | £1,314.00 |
| 38 Sections - 1734mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1390 | 4744 | £1,318.56 |
| 38 Sections - 1734mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1514 | 5167 | £1,330.32 |
| 38 Sections - 1734mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1638 | 5588 | £1,349.52 |
| 39 Sections - 1779mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1428 | 4871 | £1,353.24 |
| 39 Sections - 1779mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1554 | 5302 | £1,365.36 |
| 39 Sections - 1779mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1680 | 5733 | £1,385.04 |
| 40 Sections - 1824mm | 500mm | 2 Columns (66mm deep) | Standard Colour | 1464 | 4995 | £1,387.92 |
| 40 Sections - 1824mm | 550mm | 2 Columns (66mm deep) | Standard Colour | 1594 | 5439 | £1,400.40 |
| 40 Sections - 1824mm | 600mm | 2 Columns (66mm deep) | Standard Colour | 1724 | 5882 | £1,420.56 |
